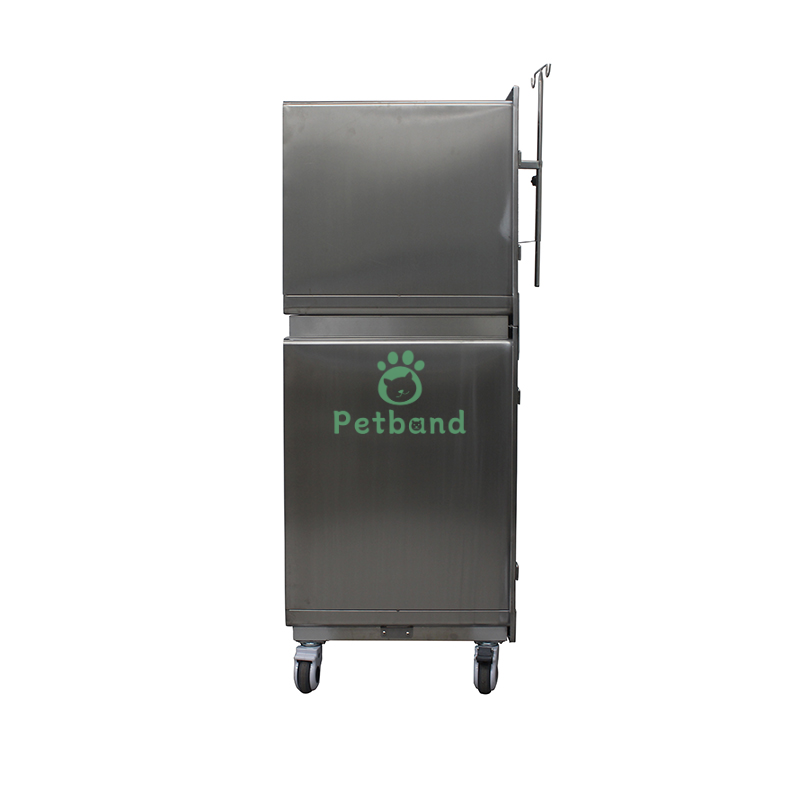

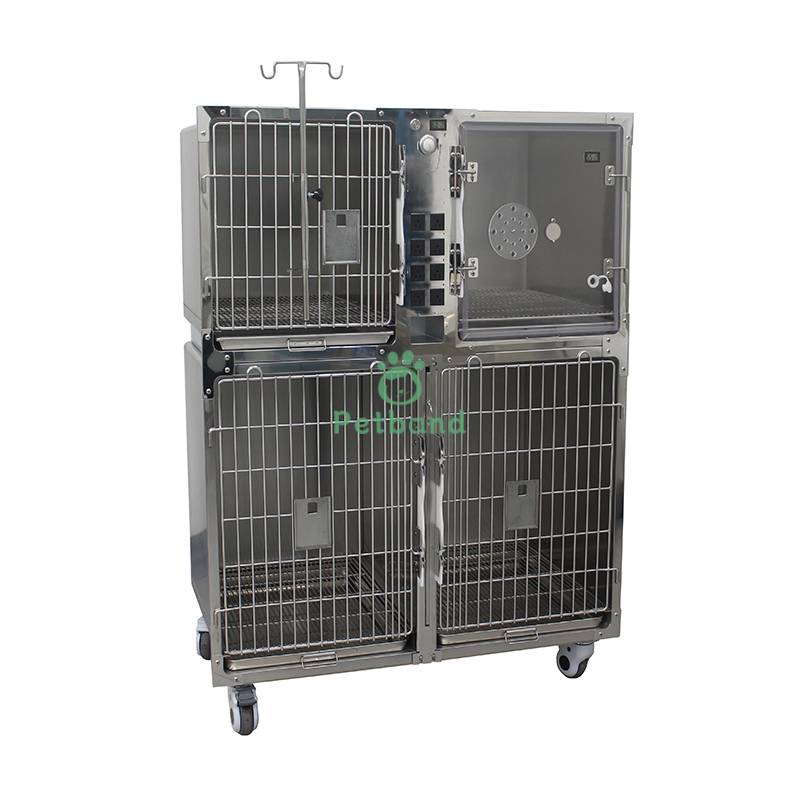

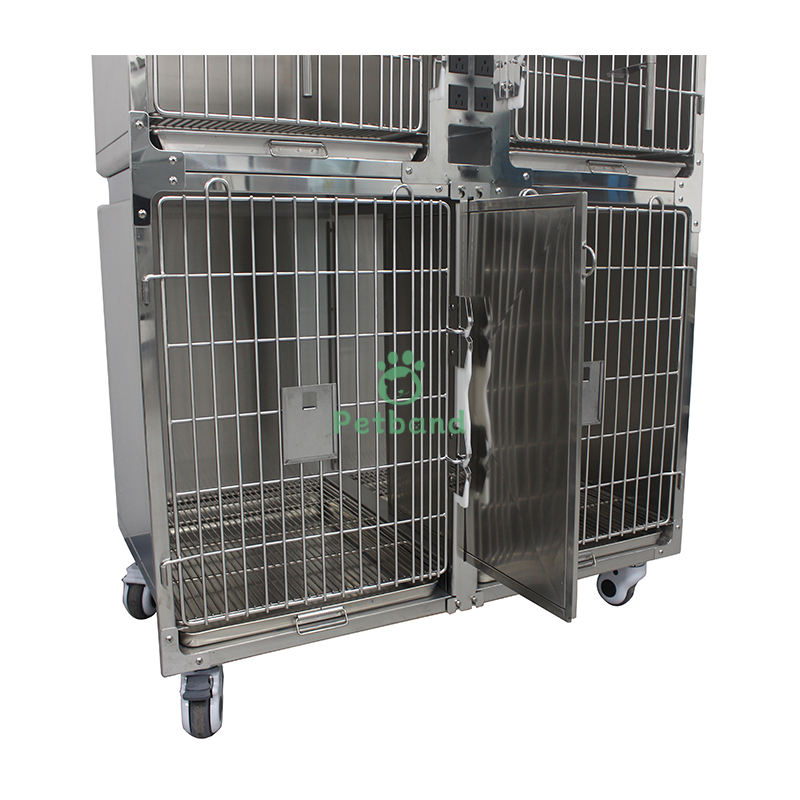

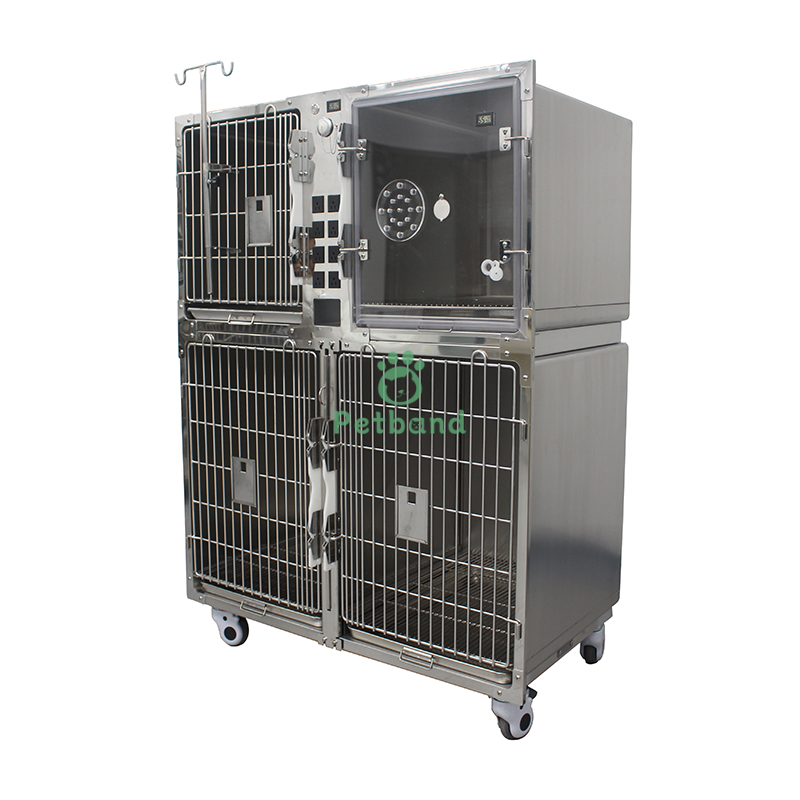

Dog cat power supply oxygen chamber cage PBVC-D01

Dog cat power supply oxygen chamber cage PBVC-D01

Product features:

1. The cage has a reasonable structure, strong pressure bearing capacity, and is sturdy and durable.

2. The door lock has a unique sliding design, which is automatically locked and safe.

3. The foot pedal grid and the cage door are welded with high frequency and high current, which is sturdy and will not be desoldered.

4. The sewage tray has a full rounded corner design, leaving no dead corners and convenient for flushing.

5. The seamless water retaining edge is built in, which is more convenient and hygienic to use.

6. The lower cage has a movable drawer design, which can be turned into a large cage when the drawer is pulled out.

7. The bottom movable brake wheel is silent, wear-resistant, and easy to move and fix.

8. The cage is innovatively designed, exquisite and unique. It can be combined at will and customized as needed.

9. Equipped with oxygen cabin door, 16-bit power interface, oxygen supply hole, dry and wet temperature display, and leakage protection.

Specifications:

1. Overall dimensions: 1220mm long, 700mm deep, 1575mm high

2. Upper cage: 550mm long, 610mm high, 700mm deep

Lower cage: 610mm long, 820mm high, 700mm deep

3. Trash tray: 687mm long, 540mm wide, 45mm high

4. Footrest mesh: 687mm long, 545mm wide, 10mm thick

5. Upper cage door: 470mm long, 480mm high, 8mm thick

6. Lower cage door: 530mm long, 690mm high, 8mm thick


Material description:

Overall 304 stainless steel material, anti-corrosion, acid-proof and rust-proof, cage body material thickness 1.2mm, cage door made of 8mm and 6mm diameter steel wire, footrest mesh made of 8mm and 4mm diameter steel wire, trash tray material thickness 0.8mm. The bottom moving wheel adopts medical universal brake wheel.
