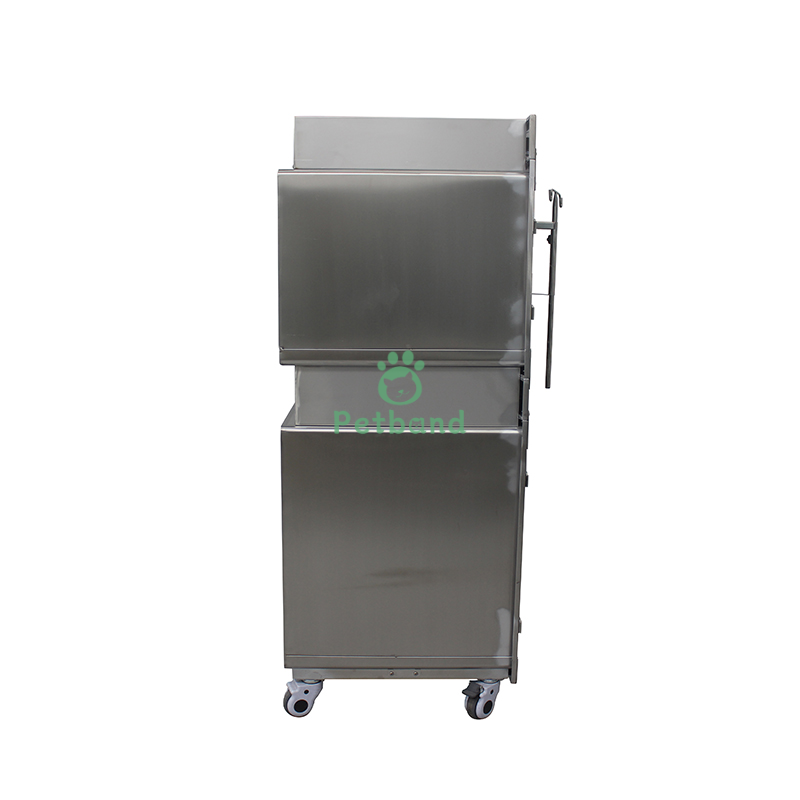

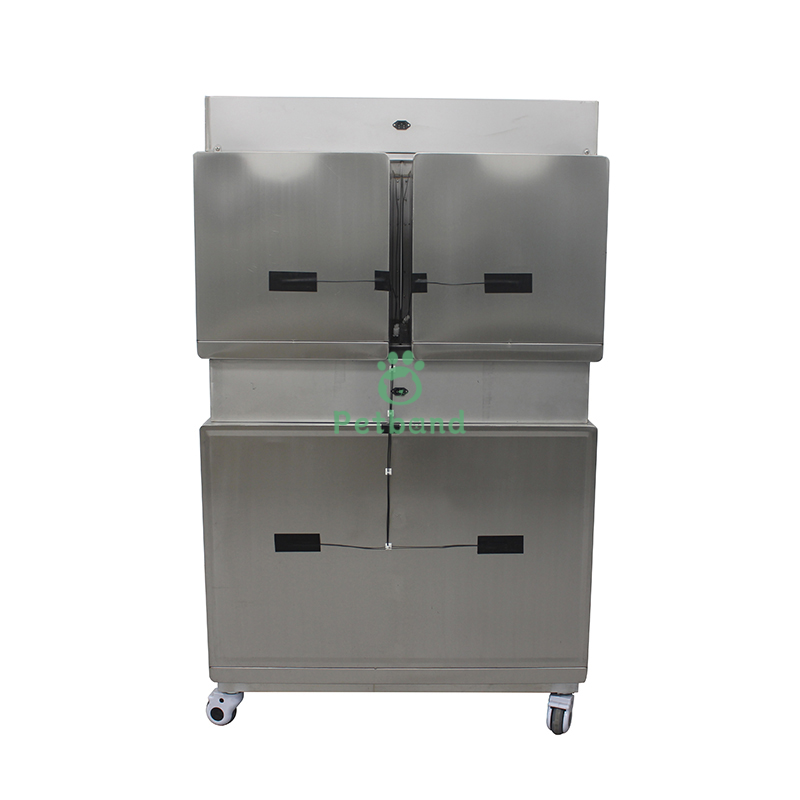

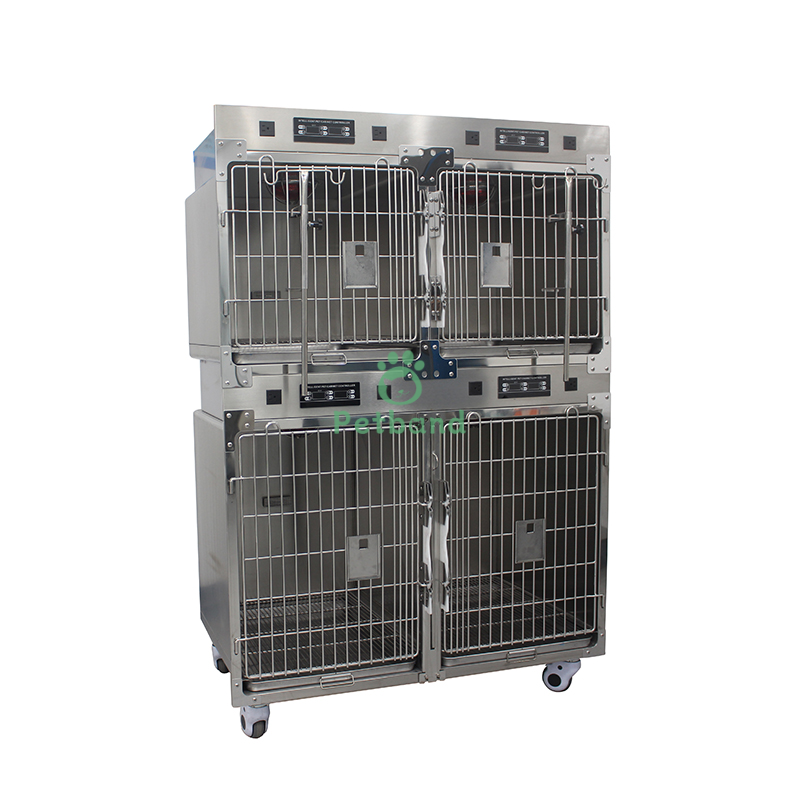

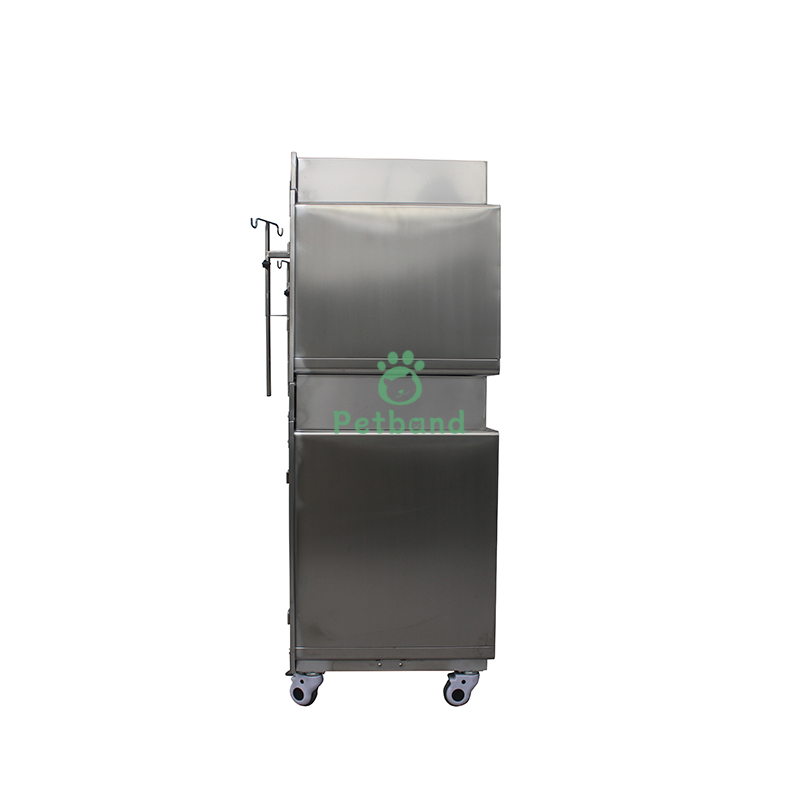

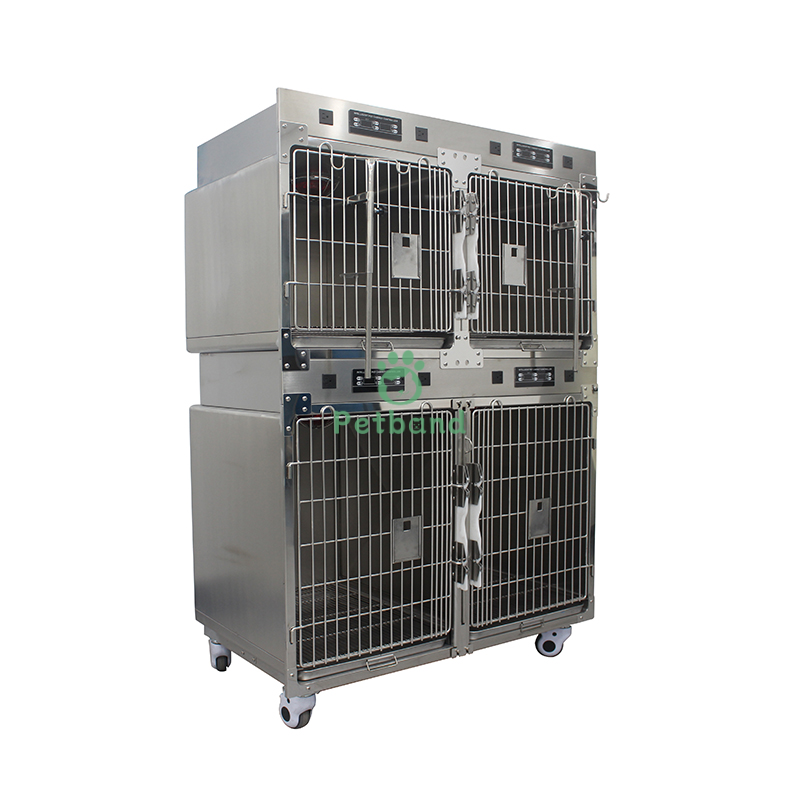

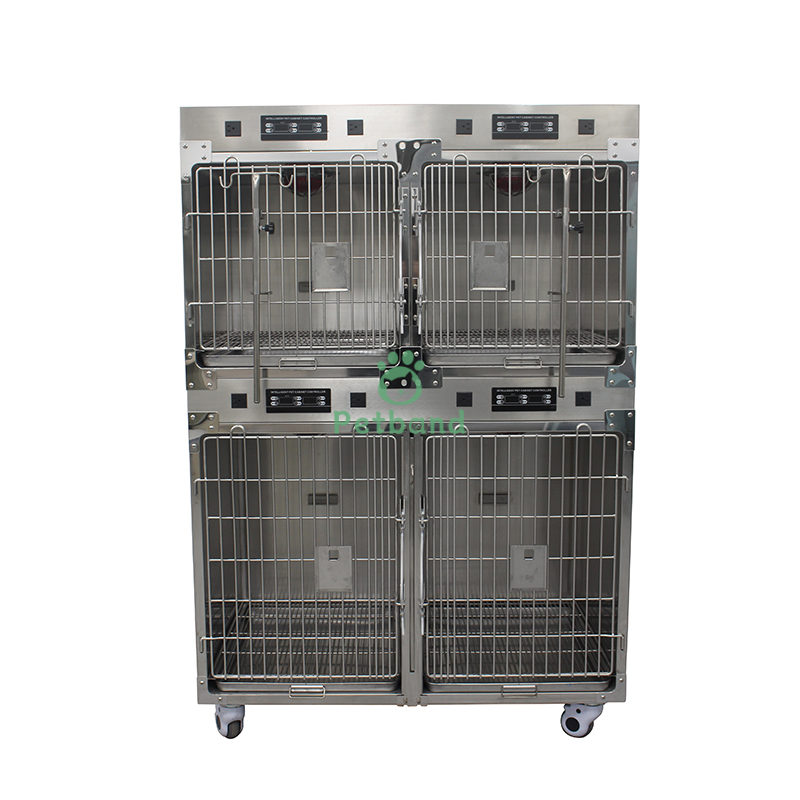

Veterinary nnfrared insulation oxygen chamber cage PBVC-D03

Veterinary nnfrared insulation oxygen chamber cage PBVC-D03

Product features:

1. The cage has a reasonable structure, strong pressure bearing capacity, and is sturdy and durable.

2. The door lock has a unique sliding design, which is automatically locked and safe.

3. The foot pedal grid and the cage door are welded with high frequency and high current, which is sturdy and will not be desoldered.

4. The sewage tray is designed with full rounded corners, leaving no dead corners and convenient for washing.

5. The seamless water retaining edge is built in, which is more convenient and hygienic to use.

6. The lower cage has a movable drawer design, which can be turned into a large cage when the drawer is pulled out.

7. The bottom movable brake wheel is silent, wear-resistant, and easy to move and fix.

8. The cage is innovatively designed, exquisite and unique. It can be combined at will and customized as needed.

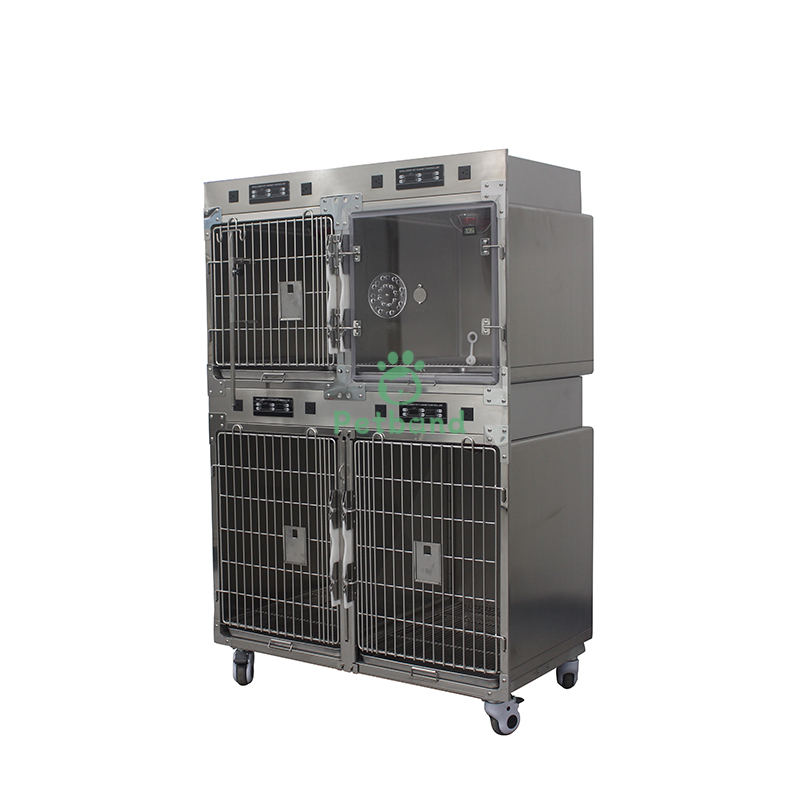

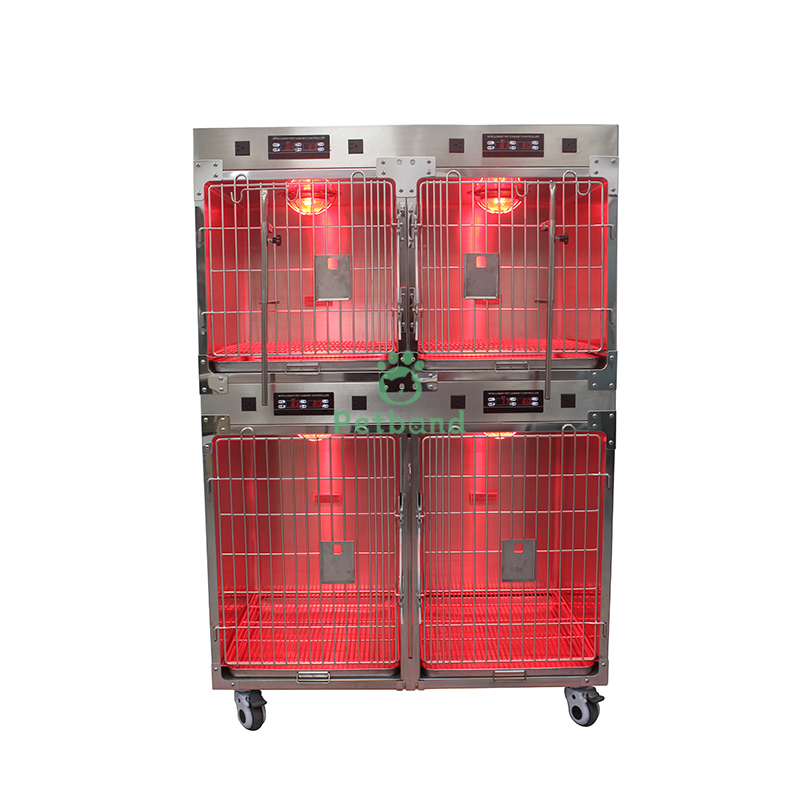

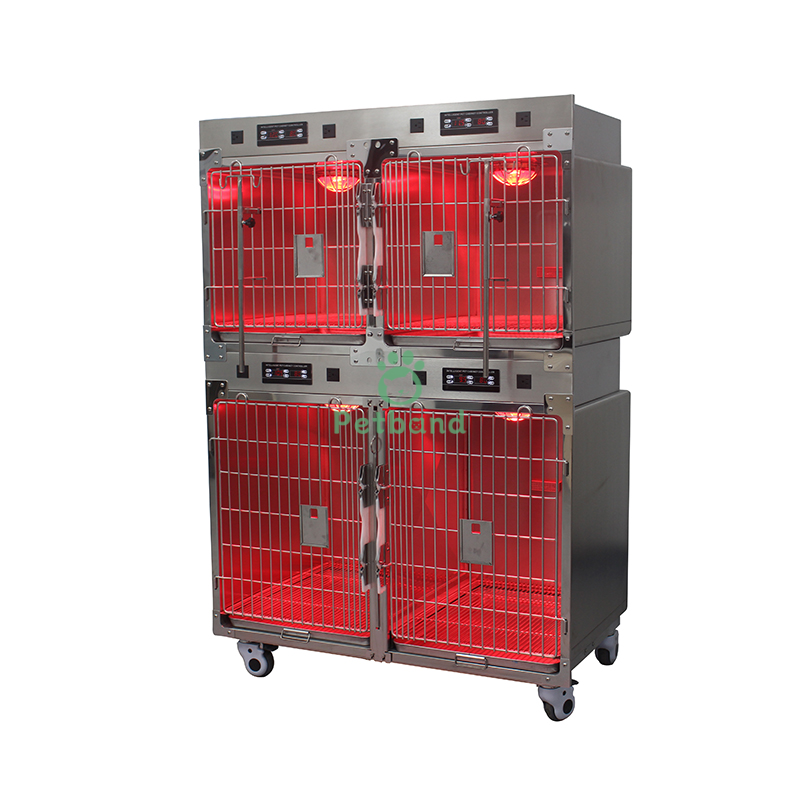

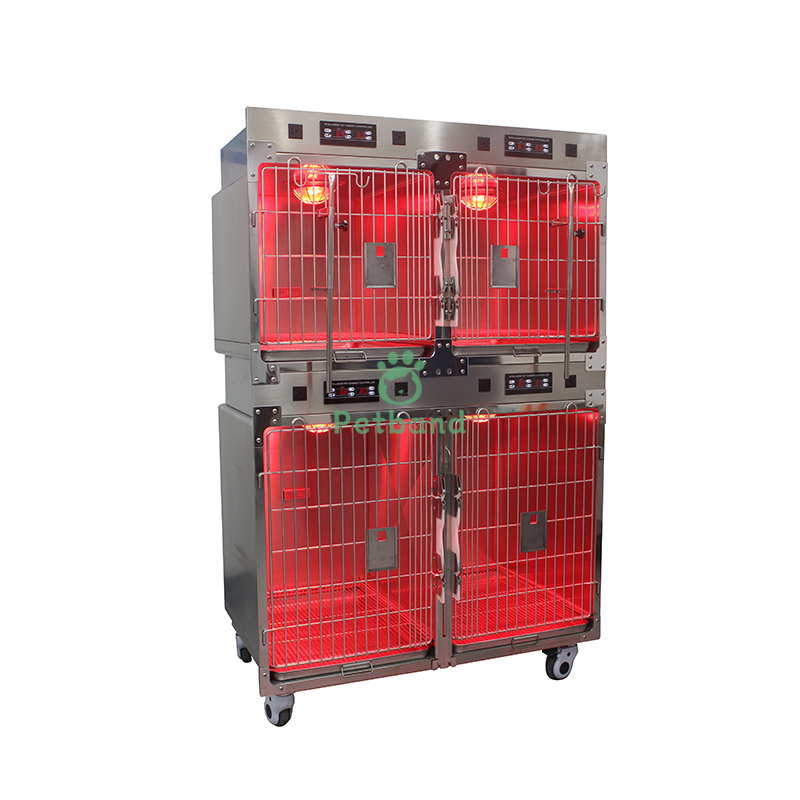

9. Equipped with warm light, oxygen cabin door, 16-bit power interface, dry and wet temperature display, and leakage protection.

10. Constant temperature controller, automatic power off when overtemperature, safe and reliable.

Specifications:

1. Overall dimensions: 1220mm long, 700mm deep, 1815mm high

2. Upper cage: 610mm long, 610mm high, 700mm deep, lower cage: 610mm long, 820mm high, 700mm deep

3. Drain tray: 687mm long, 540mm wide, 45mm high

4. Footrest mesh: 687mm long, 545mm wide, 10mm thick

5. Upper cage door: 470mm long, 480mm high, 8mm thick

6. Lower cage door: 530mm long, 690mm high, 8mm thick

7. Power supply layer: 1220mm long, 600mm deep, 120mm high

Material description:

Overall 304 stainless steel material, anti-corrosion, acid-proof and rust-proof, cage material thickness 1.2mm, cage door is made of 8mm and 6mm diameter steel wire, footrest mesh is made of 8mm and 4mm diameter steel wire, The material thickness of the dirt tray is 0.8mm. The bottom moving wheel adopts medical universal brake wheel.
